Battery Management Systems: Different Types and When To Use Them

Battery Management Systems: The Unsung Heroes of the Energy Revolution

Batteries are the lifeblood of modern energy storage, and Battery Management Systems (BMS) are their unsung heroes, keeping them safe, efficient, and ready to power everything from smart watches to EV’s to grid-scale storage. But not all BMS solutions are created equal. Like choosing between a Swiss Army knife and a sledgehammer, different applications require different features. Let’s dive into the world of BMS, demystify its core functionalities, and throw in some dad jokes for good measure.

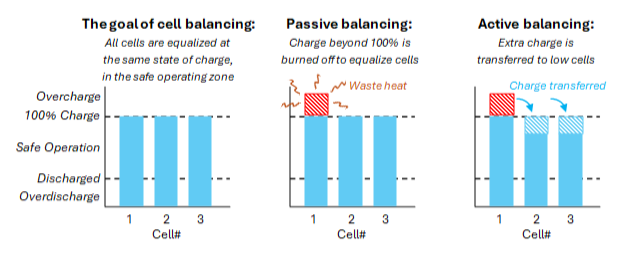

Passive balancing is like a buffet at the end of the night—if there are a few extra bites of food left over at closing time, it just gets thrown out. A passive balancer burns off excess energy that may be present in some of the cells, creating waste heat. It’s simple, reliable, and cost-effective, making it a great choice for applications where efficiency isn’t paramount, like small consumer electronics or lower-cost industrial setups.

Active balancing on the other hand, is more like a power-sharing Robin Hood—it redistributes excess charge from fuller cells to their undercharged comrades. This minimizes energy loss and maximizes overall battery life, making it ideal for electric vehicles (EVs), high-end energy storage systems, and any endurance application where squeezing every last watt-hour out of a battery is crucial. Of course, active balancing is more complex and expensive, so it’s not always the go-to solution.

Cell-Level Intelligence: When Do You Need to Get Smart?

Some battery packs need the brains of a chess grandmaster, while others can get by with the intelligence of a goldfish. Cell-level monitoring provides precise data on voltage, temperature, and sometimes even impedance for each individual cell. This level of oversight is crucial for:

• Electric Vehicles (EVs) and Aerospace: When your power source is the only thing standing between you and an embarrassing call to roadside assistance—or worse, gravity—it pays to know exactly what’s happening in every cell.
• Medical Devices: Because “oops, the battery died” is not a great thing to hear in an operating room.
• Large-Scale Energy Storage: When you’ve got thousands of cells working together, one rogue troublemaker can wreak havoc. Identifying problem cells early prevents catastrophic failures.

For smaller applications, a pack-level monitoring system might be enough, keeping costs and complexity down.

BMS Topology: One Board or Many?

Topology in BMS isn’t just a fancy word engineers use to sound smart—it’s a critical design decision.

• Single-board BMS: Like an old-school rock band, everything is on one stage. This setup is common in smaller battery packs where all cells are close together. It’s cost-effective and straightforward but becomes impractical for high-voltage or physically large systems.
• Distributed BMS: More like an orchestra with section leaders, this design uses multiple smaller BMS modules spread across the system, communicating with a central controller. It’s perfect for high-voltage EV batteries, grid storage, and any system where running long sensor wires would be a nightmare of tangled spaghetti.

BMS: The Battery’s Social Butterfly

A BMS isn’t just an overprotective nanny—it also moonlights as a social coordinator, talking to and sometimes even controlling other systems:

• Motor Controllers in EVs: “Hey, slow down, or I’m cutting your power.”
• Charging Systems: Ensuring the right voltage levels and current flow for safe and efficient charging.
• Thermal Management Systems: Because no one likes a battery meltdown.
• User Interfaces and Cloud Systems: Feeding data to dashboards, apps, and fleet management software so humans can pretend they’re in control.

Extra Features: Bells, Whistles, and Life-Savers

While balancing, monitoring, and topology are the backbone of a good BMS, additional features can make all the difference:

• State of Charge (SOC) and State of Health (SOH) Estimation: Like a fitness tracker for batteries, these algorithms estimate remaining charge and predict lifespan.
• Redundant Safety Protections: Because explosions are best left to action movies, modern BMS units feature multiple fail-safes for overvoltage, undervoltage, overcurrent, and temperature extremes.
• Cybersecurity Measures: In an era where everything’s getting hacked, ensuring your battery doesn’t turn into a remote-controlled fire hazard is a priority.

Conclusion: Picking the Right BMS for the Job

Choosing the right BMS isn’t just about ticking off features—it’s about understanding your application’s needs, balancing cost and complexity, and ensuring safety and longevity. Whether you’re building the next great EV, a mission-critical medical device, or a humble e-bike, the right BMS makes all the difference.

And remember: A well-managed battery is a happy battery. A poorly managed battery? Well, let’s just say it might leave you shocked.
