Cracking the Code: An FEA Analysis Sequence for Battery Systems (Without Losing Your Sanity)

Cracking the Code: An FEA Analysis Sequence for Battery Systems (Without Losing Your Sanity)

Finite Element Analysis (FEA) is one of those powerful tools that can either make you look like a genius or leave you staring at an error message questioning your life choices. It’s the computational equivalent of stress-testing your engineering assumptions—before reality does it for you in the form of catastrophic structural failure.

When it comes to battery systems, FEA isn’t just a nice-to-have—it’s essential. Batteries undergo mechanical, thermal, and electrical stresses that can lead to anything from performance degradation to dramatic (and highly undesirable) pyrotechnic displays. So, how do you approach an FEA analysis for a battery system in a way that’s methodical, meaningful, and doesn’t just produce colorful but useless simulation plots?

The secret is in the sequence.

The Universal FEA Analysis Sequence (a.k.a. How to Not Waste Weeks on Bad Models)

Before we dive into batteries, let’s set the stage with a proper FEA workflow. If you approach FEA like an overly enthusiastic intern hitting “Run” on a mesh-heavy model without checking the boundary conditions first, you’re in for a world of hurt. Instead, follow this structured approach:

1. Define the Problem (a.k.a. Figure Out What You’re Even Solving)

Before you start clicking buttons in your favorite FEA software, ask yourself:

• What physics are at play? (Structural? Thermal? Electrochemical? A combination?)

• What’s the goal? (Preventing failure? Reducing weight? Optimizing cooling?)

• What are the constraints? (Materials? Geometrical limits? Your sanity?)

Skipping this step is like trying to cook without reading the recipe first — sure, you might end up with something edible, but odds are it won’t be very good.

2. Build a Meaningful Model (Not a “Look How Many Elements I Have” Model)


Now that you know what you’re solving, it’s time to create a representative model. This doesn’t mean meshing the living daylights out of a high-fidelity CAD file. It means striking a balance between detail and efficiency:

• Identify key components that contribute most to the problem.

• Simplify where possible (you probably don’t need every bolt and gasket in your first pass).

• Define material properties properly (don’t assume “generic aluminum” if you need a specific alloy).

A good model is like a well-packed suitcase—it includes everything important without unnecessary baggage.

3. Apply Boundary Conditions & Loads (a.k.a. Where Most People Go Wrong)

Misapplying constraints and loads are FEA rites of passage, but you can avoid the classic mistakes:

• Ensure loads reflect reality (real-world forces rarely distribute themselves evenly just because you wish they would).

• Avoid over-constraining your model (unless you enjoy watching it behave like a stiff brick).

• If heat is involved, don’t forget thermal conductivity, convection, and radiation—your battery certainly won’t!

4. Mesh It (But Don’t Get Mesh-Happy)

Meshing is where FEA can go from “science” to “black magic.” A refined mesh in critical areas is essential, but excessive element counts will make your simulation take longer than your last attempt at assembling IKEA furniture.

Golden rules:

• Use finer mesh where stress gradients are high (like sharp corners or thin-walled structures).

• Use coarser mesh where it doesn’t matter as much (large uniform areas).

• Check aspect ratios—elongated or skewed elements will give you questionable results (and possibly a headache).

5. Solve (or Crash, Debug, Repeat)

Hit solve and brace yourself. If your model runs on the first attempt, congratulations—you’ve either done everything right or unknowingly ignored a massive problem. If it fails, go back and check:

• Are the constraints reasonable?

• Are material properties accurate?

• Is your mesh too fine or too coarse in critical areas?

• Did you remember to whisper words of encouragement to your solver?

6. Interpret Results (a.k.a. Is This a Good Plot or Just a Pretty One?)

Here’s where things get real. A colorful stress map is meaningless unless you:

• Identify actual failure risks (high stress in non-critical areas? Ignore it. High stress in a load path? Panic!!).

• Cross-check results with hand calculations (yes, you still need those).

• Validate against experimental data if possible.

A good FEA engineer doesn’t just produce results—they explain what those results mean in a real-world context.

Applying This to Battery Systems (Where Things Get Hot—Literally)

Now that we have a logical FEA process, let’s apply it to battery systems. Batteries face unique challenges that make FEA particularly valuable:

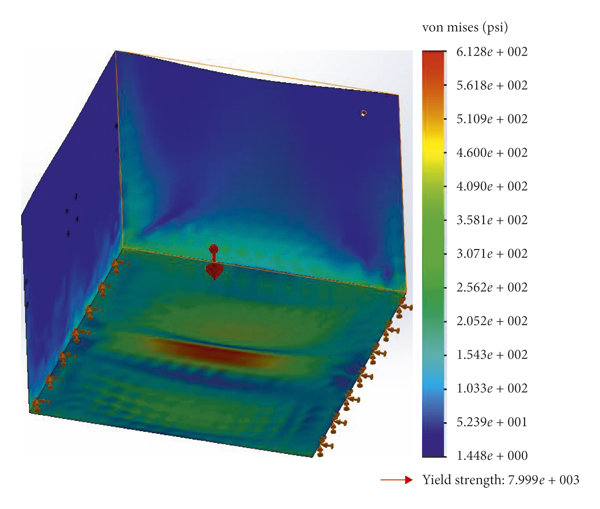

Structural Analysis (Because No One Likes a Battery That Breaks Apart)

• Consider mechanical stresses from assembly, impact, vibration, and thermal expansion.

• Pay special attention to interconnects and fasteners—these often see the highest stresses.

• Don’t forget about the enclosure—it needs to protect the cells without crushing them.

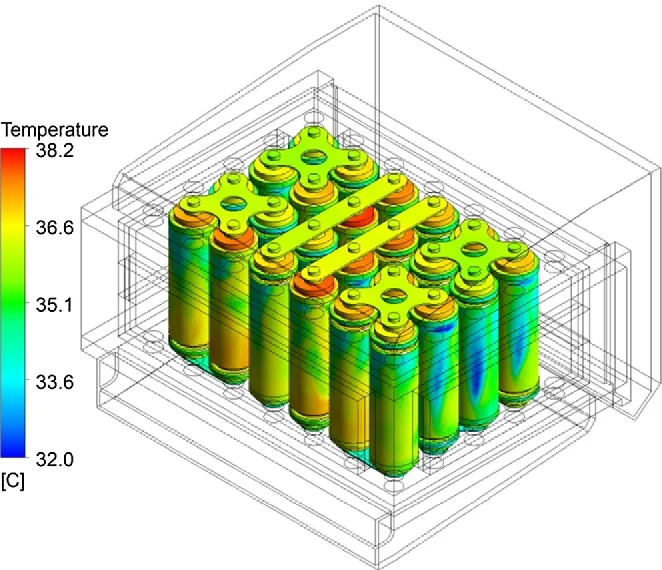

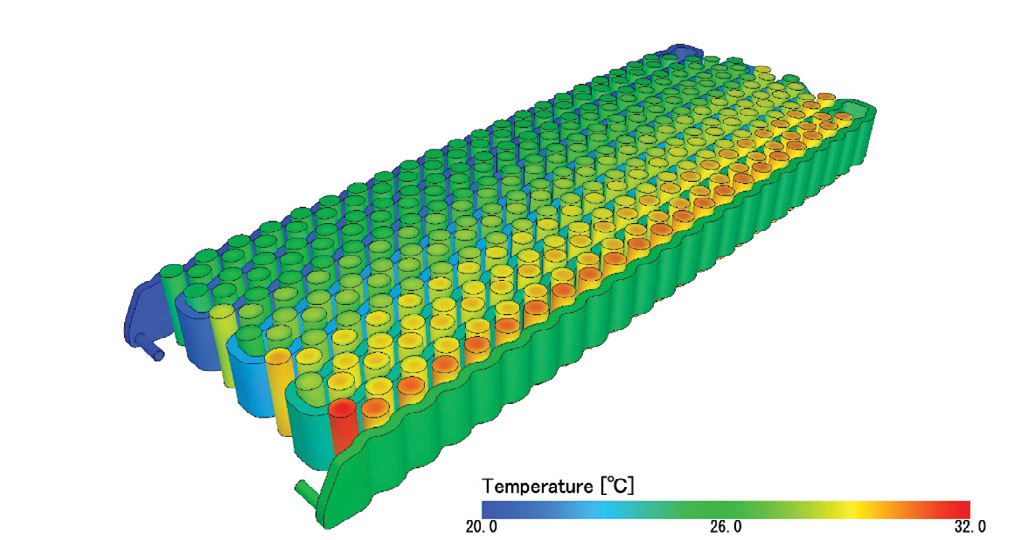

Thermal Analysis (a.k.a. How to Keep Your Battery from Becoming a Fireball)

• Evaluate heat generation from electrochemical reactions.

• Assess cooling strategies (air vs. liquid cooling, heat sinks, phase-change materials).

• Model thermal runaway scenarios (just in case things go sideways).

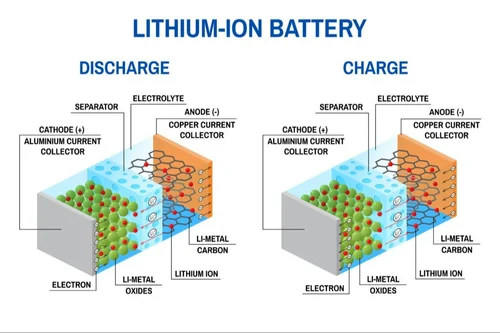

Electrochemical-Mechanical Coupling (The Nerdy Stuff That Matters)

• Thermal expansion can impact electrical conductivity in cells.

• Mechanical deformation can lead to contact loss between electrodes.

• Internal stresses can accelerate aging (or worse, cause internal shorts).

FEA helps predict these interactions before you find out the hard way, i.e., during testing, or worse—in the field.

Final Thoughts: FEA is a Tool, not a Magic Wand

FEA is a game-changer for battery system design, but it’s not a replacement for good engineering judgment. A well-thought-out analysis sequence ensures you’re solving the right problems and getting meaningful insights—without wasting hours staring at a stubborn simulation that won’t converge.

So, whether you’re designing a next-gen EV pack, a ruggedized industrial battery, or just want to avoid another FEA-induced existential crisis, follow a structured approach. Your batteries (and your stress levels) will thank you.

Now, go forth and simulate responsibly. And remember: if your first attempt works flawlessly, double-check everything—you probably just got lucky.
